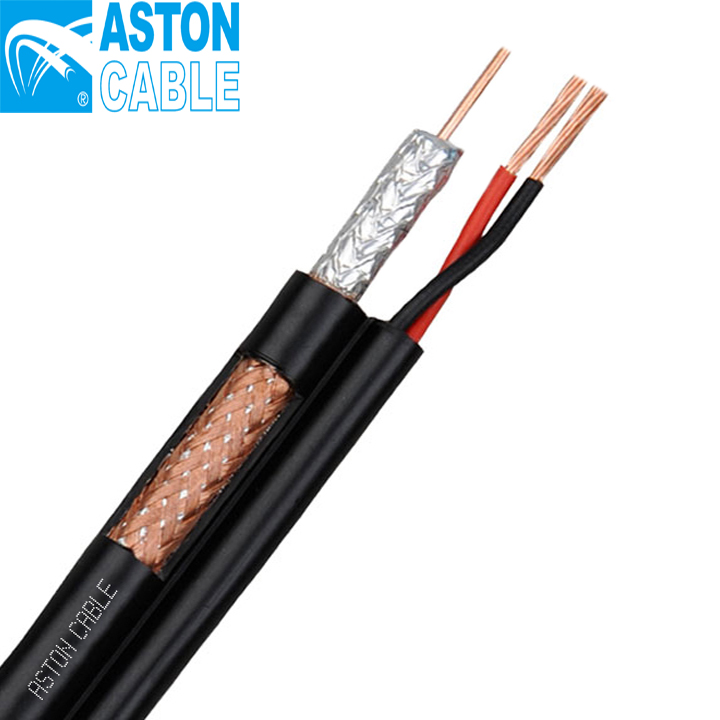

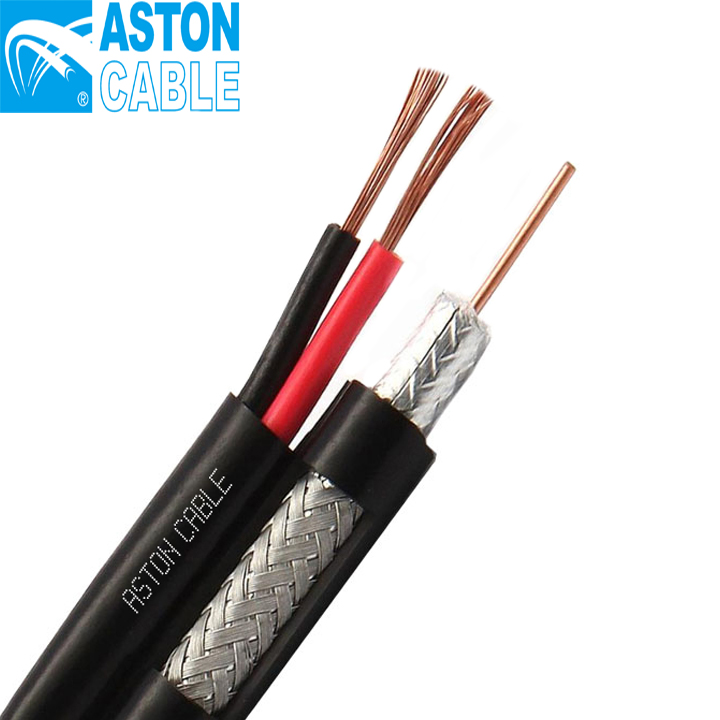

RG59 CCTV Cable Factory-Direct with Power for Security Systems

Product Details

Common Product Specifications

Product Manufacturing Process

Our RG59 CCTV cable undergoes a multi-step manufacturing process to ensure high quality and reliability. The process begins with the extrusion of the central conductor, typically made from copper-clad steel (CCS). The conductor is then encased in a dielectric insulator, usually made of foam polyethylene (FPE) to maintain consistent impedance. The next stage involves applying one or more layers of shielding, including bonded aluminum foil and a high-density braided metal mesh, which provides 95% or more coverage for excellent EMI protection. Finally, the entire assembly is encased in an outer jacket made from materials like PVC or black PE for added durability and protection against environmental factors. The quality control team then performs thorough testing to ensure the product meets industry standards and specifications.

Product Application Scenarios

RG59 CCTV cables are primarily used in security and surveillance systems to transmit video signals from cameras to recording devices. Due to their balanced combination of cost-effectiveness and reliable performance, they are ideal for small to medium-sized setups. These cables are commonly used in residential security systems to connect CCTV cameras to DVRs or monitors, offering clear video transmission for up to 750 feet. Besides residential use, they also find application in commercial buildings, retail stores, and schools. Despite the rise of digital systems, RG59 cables remain popular in many installations due to their ease of installation, flexibility, and adequate performance for most analog video signals.

Product After-Sales Service

• Warranty: 1-year limited warranty on all RG59 CCTV cables.
• Technical Support: 24/7 online and phone technical support available.
• Replacement Policy: Free replacement for defective products within the warranty period.
• Return Policy: 30-day return policy for unused products.
• Customer Service: Dedicated customer service team to assist with any inquiries.

Product Transportation

• Shipping Options: Available by sea, air, and express courier.
• Delivery Time: 15-20 business days for standard orders.
• Packaging: Normal export packaging with coil reel, plastic drum, wooden drum, color boxes, or carton boxes.
• Loading Port: Ningbo, China

Product Advantages

• Cost-Effective: Affordable solution for budget-conscious projects.
• Ease of Installation: Thin and flexible, easy to install in tight spaces.
• Short Distance Efficiency: Effective signal transmission for runs up to 750 feet.
• Customization: Available in various colors and packaging options.

Product FAQ

1. What is the maximum distance for efficient signal transmission with RG59 CCTV cable?

   The maximum recommended distance for efficient signal transmission with RG59 CCTV cable is approximately 750 feet.

2. Can RG59 CCTV cable be used for outdoor installations?

   Yes, our RG59 CCTV cable comes with a black PE jacket option for outdoor installations, providing protection against environmental factors.

3. What types of connectors are suitable for RG59 CCTV cable?

   High-quality BNC connectors are recommended for RG59 CCTV cable to ensure a solid, interference-free connection.

4. Is RG59 CCTV cable effective for high-frequency applications?

   RG59 CCTV cable is most effective for video applications up to 500 MHz and is generally not recommended for high-frequency installations.

5. What materials are used for the inner conductor of RG59 CCTV cable?

   The inner conductor of our RG59 CCTV cable is made of 0.81mm 20AWG copper-clad steel (CCS), offering a balance of performance and cost-effectiveness.

6. What is the characteristic impedance of RG59 CCTV cable?

   Our RG59 CCTV cable has a characteristic impedance of 75 ohms, suitable for video signal transmission.

7. How can I prevent electromagnetic interference when installing RG59 CCTV cable?

   Ensure that the shielding is intact and properly connected, and avoid running the cable parallel to power lines to minimize electromagnetic interference.

8. What is the typical packaging available for RG59 CCTV cable?

   Our RG59 CCTV cable is available in coil reels, plastic drums, wooden drums, color boxes, and carton boxes for easy transportation and handling.

9. What certifications do your RG59 CCTV cables have?

   Our RG59 CCTV cables are ISO9001, ISO14001, RoHS, CE, and IEC compliant, ensuring high quality and compliance with international standards.

10. How can I contact customer support for technical assistance?

    You can contact our 24/7 customer support team via phone or online chat for any technical assistance with our RG59 CCTV cable.

Product Hot Topics

• What are the key benefits of using factory-direct RG59 CCTV cable for security systems?

  Factory-direct RG59 CCTV cables offer several key benefits, including cost savings, consistent quality, and the ability to customize according to specific needs. Buying directly from the factory eliminates middlemen, reducing costs and ensuring prompt delivery. Additionally, factory-direct products often have stringent quality control processes, resulting in reliable and high-performance cables suitable for various security applications.

• How does the shielding in RG59 CCTV cable enhance its performance in security systems?

  The shielding in RG59 CCTV cables plays a crucial role in enhancing performance by protecting against electromagnetic interference (EMI) and radio frequency interference (RFI). With a braided shield and bonded aluminum foil, these cables achieve over 95% coverage, ensuring clean signal transmission even in environments with high levels of electronic noise. This makes RG59 CCTV cables a reliable choice for maintaining the integrity of video signals in security systems.

• Why is the 75-ohm impedance important for RG59 CCTV cables?

  The 75-ohm impedance is a standard characteristic crucial for video signal transmission. This impedance level matches the typical input/output impedance of video equipment, ensuring minimal reflection and signal loss. For CCTV applications, a 75-ohm impedance in RG59 cables is essential to maintain high-quality video output, especially in analog systems where signal integrity is paramount.

• What are the advantages of using RG59 CCTV cable with power for security installations?

  Using RG59 CCTV cable with power offers the advantage of combining video signal transmission and power delivery in a single cable. This simplifies installation, reduces clutter, and lowers the overall cost by eliminating the need for separate power cables. It is especially beneficial in CCTV systems where cameras require power, streamlining the setup process and enhancing the efficiency of security installations.

• How does the dielectric material in RG59 CCTV cable affect its performance?

  The dielectric material in RG59 CCTV cable, typically foam polyethylene (FPE), plays a critical role in maintaining the cable's characteristic impedance and minimizing signal loss. A high-quality dielectric insulator ensures consistent signal transmission by separating the central conductor from the shielding, preventing unwanted interactions. This contributes to the cable's overall effectiveness in transmitting clear video signals in security applications.

• What makes factory-direct RG59 CCTV cables suitable for small to medium-sized security systems?

  Factory-direct RG59 CCTV cables are ideal for small to medium-sized security systems due to their balance of cost-effectiveness, ease of installation, and adequate performance for short to medium distances. These cables are designed to handle typical video signal transmission requirements, making them a practical choice for residential and commercial installations where budget and efficiency are important factors.

• How to properly install RG59 CCTV cable to minimize signal loss?

  Proper installation of RG59 CCTV cable is crucial to minimize signal loss. Key tips include using high-quality connectors like BNC, keeping cable runs as short as possible, avoiding kinks or bends that can damage the dielectric insulator, and ensuring that the shielding is intact and properly connected. Additionally, keeping the RG59 cable away from parallel power lines can prevent electromagnetic interference, enhancing overall signal quality.

• What are the typical packaging options for factory-direct RG59 CCTV cable?

  Factory-direct RG59 CCTV cables are available in various packaging options to suit different needs. Common choices include coil reels, plastic drums, wooden drums, color boxes, and carton boxes. These packaging options are designed to facilitate easy transportation, storage, and handling, ensuring that the cables reach their destination in optimal condition. Custom packaging can also be arranged to meet specific customer requirements.

• How do factory-direct RG59 CCTV cables comply with international standards?

  Our factory-direct RG59 CCTV cables comply with international standards, including ISO9001, ISO14001, RoHS, CE, and IEC. These certifications ensure that the cables meet stringent quality, environmental, and safety requirements. Compliance with these standards guarantees that our RG59 CCTV cables are suitable for global markets, offering reliable performance and safety in various security and surveillance applications.

• What are the best practices for maintaining the quality of RG59 CCTV cables during installation?

  To maintain the quality of RG59 CCTV cables during installation, follow best practices such as using high-quality connectors, avoiding sharp bends or kinks, and keeping the cable runs as short as feasible. Ensure that the shielding is intact and properly connected to minimize electromagnetic interference. Additionally, avoid running the RG59 cable parallel to power lines to prevent signal degradation and maintain video quality in security systems.
