Introduction to RG6 Cable for TV

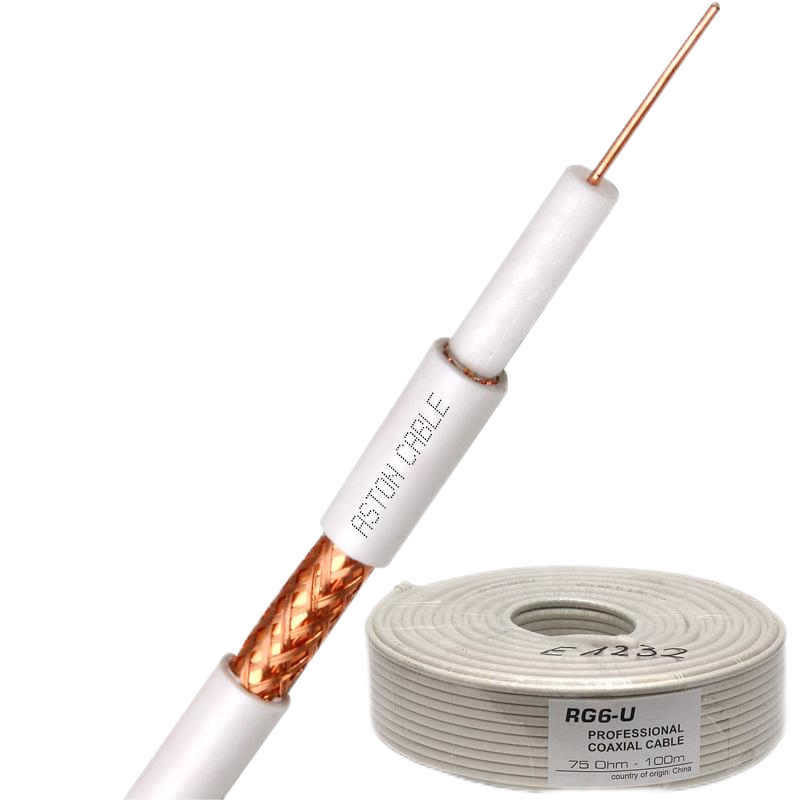

● Overview of RG6 Coaxial Cable
RG6 cables are a type of coaxial cable widely used in television setups. These cables are known for their ability to transmit high-frequency signals with minimal loss, making them ideal for both satellite and cable TV installations. Named after their Radio Guide specification, the "6" denotes a specific level of performance related to signal loss and cable construction.
● Common Uses in Television Setups
RG6 cables are commonly used to connect TVs to various sources of programming, such as cable TV providers, satellite dishes, and even over-the-air antennas. They are also used in home theater systems and video surveillance systems due to their reliability and performance.
Maximum Distance for RG6 Cable
● Standard Distance Limitations
The maximum distance an RG6 cable can effectively carry a signal depends on several factors, including the quality of the cable and the frequency of the signal being transmitted. Generally, an RG6 cable can run up to 150 feet without a significant loss in signal quality. Beyond this distance, you may experience signal degradation, leading to poor picture quality or loss of signal altogether.
● Comparison with Other Coaxial Cables (RG59, RG11)
When comparing RG6 with other types of coaxial cables, such as RG59 and RG11, it's essential to consider the specific application. RG59 cables are typically used for analog video and are not suitable for long-distance runs due to their higher signal loss. On the other hand, RG11 cables are designed for long-distance runs, offering lower signal loss over extended lengths but are thicker and less flexible.
Factors Affecting Signal Quality
● Impact of Cable Length on Signal
The length of the RG6 cable directly impacts the quality of the signal. As the cable length increases, the signal attenuation also increases, resulting in a weaker signal at the receiving end. To maintain optimal signal quality, it's crucial to keep the cable length within recommended limits and use high-quality cables.
● Influence of Dielectric Material Quality
The dielectric material used in RG6 cables plays a significant role in signal transmission. High-quality dielectric materials, such as foam polyethylene, provide better insulation and lower signal loss compared to cheaper materials. When purchasing RG6 cables, it's essential to consider the quality of the dielectric material to ensure superior performance.
Role of Frequency in Signal Loss
● Frequency Dependence on Signal Attenuation
Signal loss in RG6 cables is frequency-dependent. Higher frequency signals tend to experience greater attenuation compared to lower frequency signals. For instance, signals in the range of 1 GHz will attenuate more than those in the 50 MHz range. This frequency dependence must be considered when planning cable runs, especially for high-frequency applications like satellite TV.
● Typical Frequency Ranges Used in TV Setups
Television signals usually operate in the 50 MHz to 1 GHz range. Cable TV signals often occupy the lower end of this spectrum, while satellite TV signals are found at the higher end. Understanding the frequency range of your TV setup can help you choose the right RG6 cable and determine the maximum run length.
Techniques to Minimize Signal Degradation
● Using Signal Amplifiers or Boosters
One effective way to counteract signal degradation in long RG6 cable runs is to use signal amplifiers or boosters. These devices amplify the signal before it begins to degrade, ensuring a strong signal reaches the TV. When placing signal amplifiers, it's crucial to install them as close to the source as possible for maximum effectiveness.
● Importance of High-Quality Connectors
The quality of connectors used with RG6 cables also significantly affects signal quality. Poor-quality connectors can introduce signal loss and noise, degrading overall performance. Using high-quality, properly installed connectors can help maintain signal integrity over long distances and ensure a clear, reliable TV signal.
Comparing RG6 with RG11 for Long Distances
● Advantages and Disadvantages of RG11 for Extended Runs
For installations requiring longer cable runs, RG11 cable may be a better choice due to its lower signal loss over extended distances. While RG11 offers better performance for long runs, it is thicker and more challenging to work with compared to RG6. Additionally, RG11 cables are more expensive, which can be a consideration for budget-conscious projects.
● Situations Where RG11 is Preferable Over RG6
RG11 cable is ideal for scenarios where the cable run exceeds 150 feet, such as large commercial installations, multi-story buildings, or long-distance connections between outbuildings. In these cases, the lower signal loss of RG11 outweighs the disadvantages of its thickness and cost, providing a more reliable signal over long distances.
Installation Tips for RG6 Cables
● Best Practices for Laying Cable to Avoid Damage
Proper installation of RG6 cables is crucial for maintaining signal quality. When running cables, avoid sharp bends, kinks, and physical damage that can affect their performance. Use proper cable management techniques, such as cable clips and conduits, to protect the cables and ensure a clean, organized installation.
● Environmental Considerations (Heat, Moisture)
Environmental factors, such as heat and moisture, can impact the performance and longevity of RG6 cables. When installing cables outdoors or in humid environments, use weather-resistant RG6 cables designed for such conditions. Additionally, keep cables away from heat sources and ensure proper ventilation to prevent overheating and signal loss.
Maintenance and Troubleshooting RG6 Cable Issues
● Common Problems and Their Solutions
Common issues with RG6 cables include signal degradation, interference, and physical damage. To troubleshoot these problems, start by inspecting the cable for visible damage or wear. Next, check the connectors for proper installation and secure connections. If issues persist, consider using a signal booster or replacing the cable with a higher-quality alternative.
● Regular Maintenance Practices
Regular maintenance of RG6 cables can help prevent issues and prolong their lifespan. Periodically inspect cables and connectors for signs of damage or wear, and replace any compromised components. Additionally, keep the installation area clean and free from dust, moisture, and other environmental factors that can degrade cable performance.
Practical Applications of RG6 in Home and Commercial Settings
● Use Cases in Residential TV Setups
In residential settings, RG6 cables are commonly used to connect TVs to cable or satellite boxes, over-the-air antennas, and home theater systems. Their flexibility and performance make them ideal for various home applications, ensuring high-quality video and audio transmission.
● Application in Commercial Installations (Hotels, Offices)
In commercial installations, such as hotels and offices, RG6 cables are used to distribute TV signals to multiple rooms or locations. These installations often require longer cable runs, making signal quality and attenuation critical considerations. Using high-quality RG6 cables and appropriate signal boosters can help maintain excellent performance in these demanding environments.
Conclusion and Recommendations
● Summarizing Key Points About RG6 Cable Distances
In summary, the maximum effective distance for running an RG6 cable for TV is approximately 150 feet. Various factors, including frequency, dielectric material quality, and environmental conditions, can impact signal quality over this distance. For longer runs, consider using RG11 cables or signal boosters to maintain signal integrity.
● Final Advice on Choosing and Installing RG6 Cables for Optimal TV Performance
When selecting RG6 cables, prioritize high-quality cables with superior dielectric materials and connectors. Proper installation and regular maintenance are essential for ensuring reliable performance and longevity. For extended runs or challenging environments, use RG11 cables or signal amplifiers to maintain optimal signal quality.
