· Product Details
| Place of Origin: | China |
| Brand Name: | ASTON or OEM |
| Certification: | SGS CE ROHS ISO9001 |
| Coaxial Cable Daily Output: | 200KM |
· Payment & Shipping
| Minimum Order Quantity： | 30km |
| Price（usd） | Negotiate |
| Packaging Details： | Normal export packaging |
| Supply Ability ： | 25000KM/Per year |
| Delivery Port： | Ningbo |
· Specification
|
Product Name: |
RG6 Coaxial cable |
Jackets: |
PVC,LSZH,PE |
|
Color: |
White Black or Customized |
Conductor: |
1.02MM 18AWG |
|
Usage: |
CATV Antenna |
Logo: |
OEM |
|
Industrial Use: |
Data transmission cable |
Origin: |
Hangzhou Zhejiang |
· Quick detail
Conductor ：18 AWG Copper
Stranding ： Solid
Insulation ： Material Gas Injected Polyethylene
Insulation Thickness ： 0.180” Nominal
Number of Conductors ： 1 Center Conductor
Shield ： 100% Al Foil + 61% CCA. Braid (36 AWG)
Jacket Material ： PVC
Cable Diameter ： 0.265'' Nominal
Cable Weight ： 35 lbs/1000 ft Nominal
· Description
100% copper conductor coaxial cable rg6 support good signal transmission, longer service cable life, fewer after-sales issues, this cable is good choose for customers who want better quality and market.
· Attenuation
5 MHz - 5 MHz - 1.7 dB/100m,
50 MHz - 5.0 dB/100m,
200 MHz - 8.7 dB/100m,
400 MHz - 12.8 dB/100m,
800 MHz - 18.0 dB/100m,
1000 MHz - 19.8 dB/100m,
1350 MHz - 23.8 dB/100m,
1750 MHz - 28.0 dB/100m,
2150 MHz - 31.4 dB/100m,
3000 MHz - 38.0 dB/100m
· Product Display
 |
 |
 |
 |
 |
 |
Featured Products
-
Cat 7 Ethernet Cable High Speed 10Gbps 600Mhz
-
HIGH SPEED NETWORK COPPER CAT6A CABLE 500MHz LAN CABLE CAT6A
-

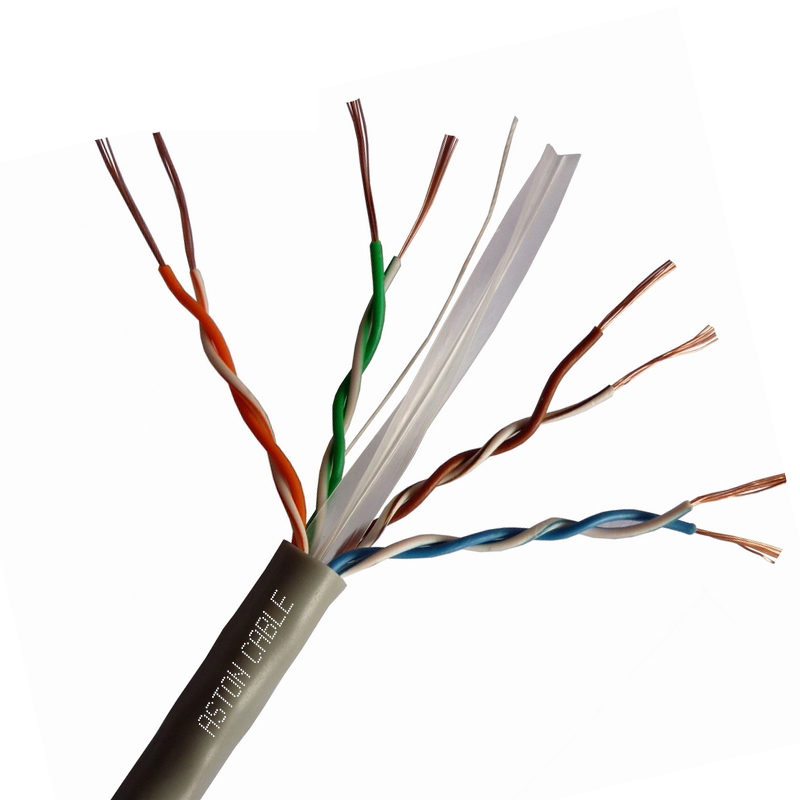

ASTON Cable factory LAN Cable CAT6 Copper conductor 23AWG cable network system
-

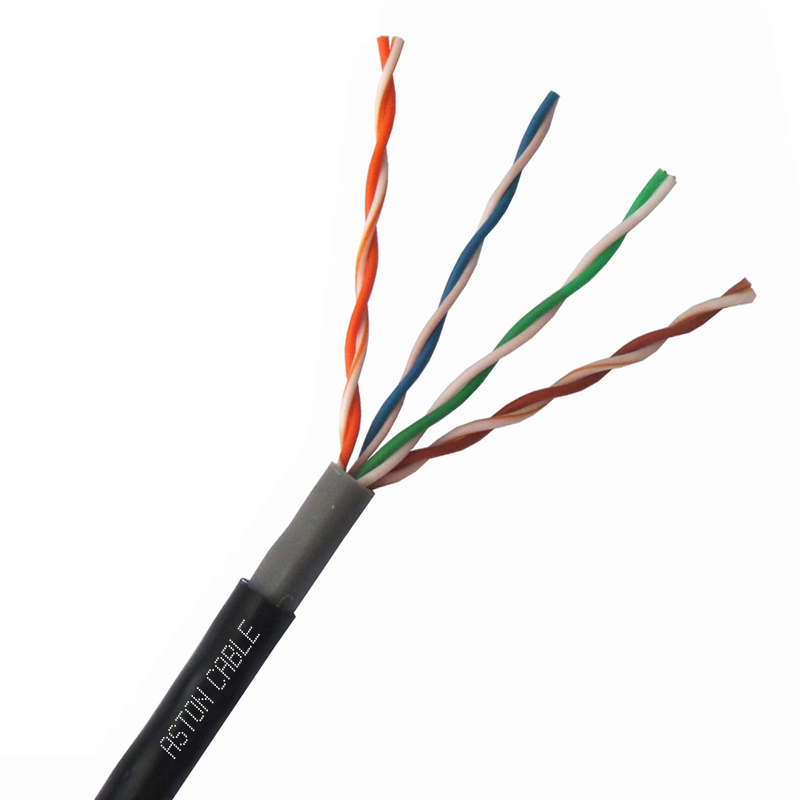

DOUBLE JACKETS PVC AND PE CAT5E U/UTP FOR OUTDOOR
-
