SY Armored (SY) PVC Control Cables

SY Armored (SY) PVC Control Cables

· Short Description

- These steel wire braided flexible connecting cables for instrumentation and control equipment, for tooling machinery production lines, and in flexible applications for free movement without tensile load. Suitable for use in dry, moist and wet rooms. The galvanised steel wire braid serves as protection against mechanical traverse loads and acts as a magnetic screen against interference. These cables are not used for outdoor or underground installation. SY control cables are not suitable for fixed wiring applications requiring compliance with the regulations set out in BS7671.

Characteristics

Voltage Rating : 300/500V

Test Voltage : 4kV

Temperature Rating : Fixed: -40°C to +80°C

Flexed: -5°C to +70°C

Minimum Bending Radius : Fixed: 4 × overall diameter

Flexed: 12.5 × overall diameter

- MOQ： 30KM


Datasheet

Product Detail

Product Tags

· Product Details

Place of Origin: China
Brand Name: ASTON or OEM
Certification: SGS CE ROHS ISO9001
Coaxial Cable Daily Output: 200KM



· Payment & Shipping

Minimum Order Quantity： 30km
Price（usd） Negotiate
Packaging Details： Normal export packaging
Supply Ability  ： 25000KM/Per year
Delivery Port： Ningbo

· Specification



Product Name:

SY Control cable

Jackets:

LSZH

Color:

Gray

Conductor:

Class 5 flexible annealed plain copper conductor

Usage:

Control technology

Logo:

OEM

Industrial Use:

Measurement and control technology

Origin:

Hangzhou Zhejiang



· Quick detail

Conductor Class 5 flexible plain copper wires

Insulation

PVC (Polyvinyl Chloride)

Inner Sheath

PVC (Polyvinyl Chloride)

Armour

GSWB (Galvanised Steel Wire Braid)

Sheath

PVC (Polyvinyl Chloride)

Core Identification：Black with white number

From 3 cores: Black with white number + Green/Yellow

Sheath Colour：Transparent



· Description

No. of cores

Nominal cross sectional area(mm2)

Nominal thickness of insulation(mm)

Nominal thickness of sheath(mm)

Nominal overall diameter(mm)

Nominal weight kg/km

2

0.75

0.4

0.8

7.2

79.3

2

1.0

0.4

0.8

7.6

91

2

1.5

0.4

0.8

8.2

110

3

0.75

0.4

0.8

7.5

91.3

3

1.0

0.4

0.8

7.9

104

3

1.5

0.4

0.8

8.6

129

3

2.5

0.5

0.9

10.1

185

3

4

0.6

1.0

12

269

3

6

0.65

1.1

13.5

354

4

0.75

0.4

0.8

8

107

4

1.0

0.4

0.8

8.5

124

4

1.5

0.4

0.8

9.2

151

4

2.5

0.5

0.9

11.1

230

4

4

0.6

1.1

13.2

332

4

6

0.65

1.2

14.8

442

5

0.75

0.4

0.8

8.5

120

5

1.0

0.4

0.8

9.1

140

5

1.5

0.4

0.9

10.1

182

5

2.5

0.5

1.0

12.1

266

5

4

0.6

1.1

14.2

382

5

6

0.65

1.3

16.5

525

7

0.75

0.4

0.8

9.1

147

7

1.0

0.4

0.9

9.9

181

7

1.5

0.4

0.9

11

226

7

2.5

0.5

1.1

13.2

338

12

0.75

0.4

1.0

10.9

237

12

1.0

0.4

1.0

12.7

280

12

1.5

0.4

1.1

14.2

365

18

0.75

0.4

1.1

13.7

322

18

1.0

0.4

1.2

14.9

398

18

1.5

0.4

1.3

16.8

521

· Product Display

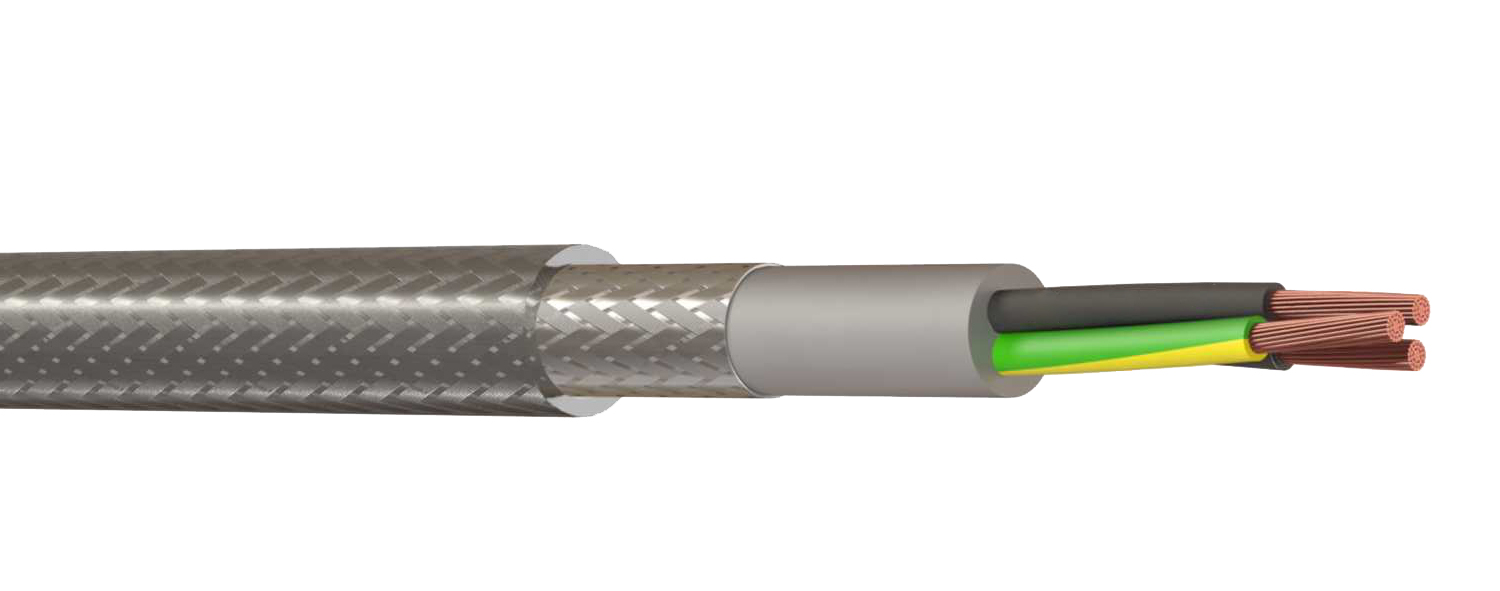

SY cable
