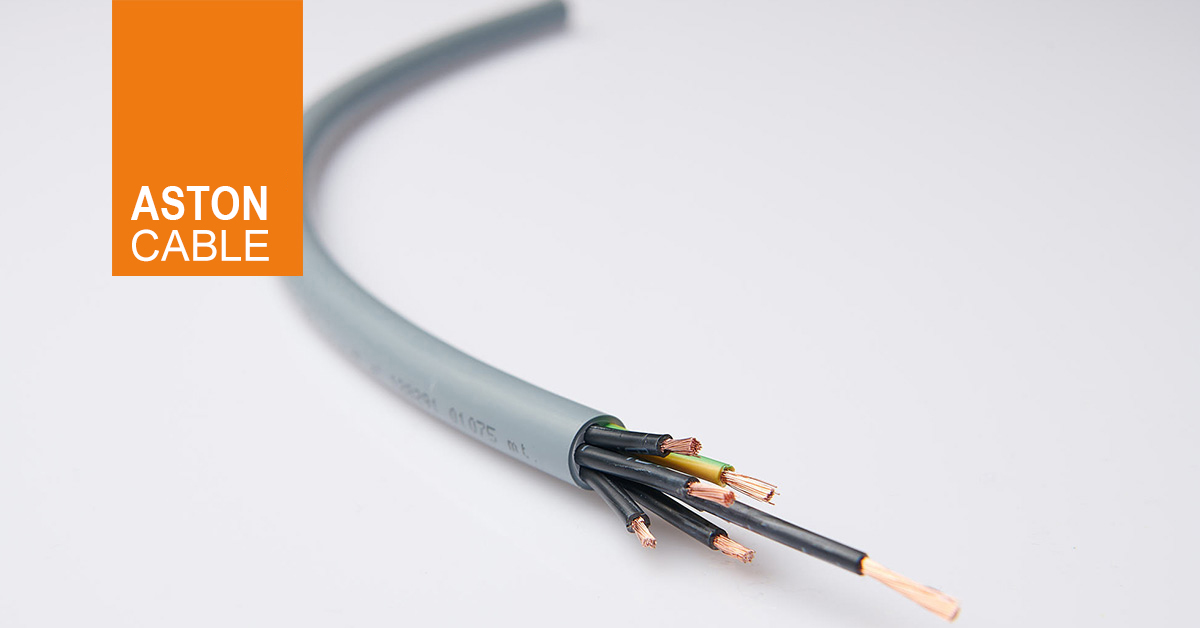

YY LSZH Control Flexible Copper Cable

· Short Description

- YY Control is a flexible mulit-core cable with class 5 flexible annealed plain copper conductors, PVC insulation, and a grey PVC sheath. YY Cable is used in fixed installations or flexible use in conditions with light mechanical stress. It can be used in dry and moist area’s including outdoors when mechanically protected. YY is widely used on production lines, conveyor systems, machine tool manufacturing and air conditioning systems.

Conductor: Class 5 flexible annealed plain copper conductor

Number of Conductors: 2/3/4/5/7

Insulation:

YY PVC: PVC (Polyvinyl Chloride)

YY LS0H: XPLE (Cross-Linked Polyethylene)

Seath:

YY PVC: PVC (Polyvinyl Chloride)

YY LS0H: LSZH

- MOQ：30KM

Quick inquiry Datasheet

Product Detail

Product Tags

· Product Details

Place of Origin:	China
Brand Name:	ASTON or OEM
Certification:	SGS CE ROHS ISO9001
Coaxial Cable Daily Output:	200KM

· Payment & Shipping

Minimum Order Quantity：	30km
Price（usd）	Negotiate
Packaging Details：	Normal export packaging
Supply Ability ：	25000KM/Per year
Delivery Port：	Ningbo

· Specification

Product Name:	YY Control cable	Jackets:	LSZH
Color:	Gray	Conductor:	OFC Copper
Usage:	Control	Logo:	OEM
Industrial Use:	Measurement and control technology	Origin:	Hangzhou Zhejiang

· Quick detail

YY cable is a PVC insulated flexible control cable which has a grey sheath made from polyvinyl chloride. YY is primarily used in industrial applications for connecting electrical equipment and to distribute power.

· Description

Size and Dimensions – 2 core

Part No.	No. cores	Conductor or cross section area(mm²)	Cable or cross section area(mm²)	Overall diameter (mm)	Nominal weight (kg/km)	Resistance of copper conductor (Ω/km) at 20℃
2C0.75YY	2	0.75	27.32	5.9	50	26.0
2C1.0YY	2	1.0	30.17	6.2	55	19.5
2C1.5YY	2	1.5	36.29	6.8	80	13.3
2C2.5YY	2	2.5	55.38	8.4	135	7.98
2C4.0YY	2	4.0	84.90	10.4	197	4.95
2C6.0YY	2	6.0	113.04	12.0	225	3.30
2C10YY	2	10.0	171.94	14.8	460	1.91

Size and Dimensions- 3 core

Part No.	No. cores	Conductor or cross section area(mm²)	Cable or cross section area(mm²)	Overall diameter (mm)	Nominal weight (kg/km)	Resistance of copper conductor (Ω/km) at 20℃
3C0.75YY	3	0.75	30.17	6.2	60	26.0
3C1.0YY	3	1.0	33.16	6.5	70	19.5
3C1.5YY	3	1.5	40.69	7.2	95	13.3
3C2.5YY	3	2.5	62.17	8.9	165	7.98
3C4.0YY	3	4.0	98.47	11.2	250	4.95
3C6.0YY	3	6.0	128.61	12.8	305	3.30
3C10YY	3	10.0	195.96	15.8	590	1.91

Part No.	No. cores	Conductor or cross section area(mm²)	Cable or cross section area(mm²)	Overall diameter (mm)	Nominal weight (kg/km)	Resistance of copper conductor (Ω/km) at 20℃
5C0.75YY	5	0.75	42.98	7.4	88.5	26.0
5C1.0YY	5	1.0	46.54	7.7	100	19.5
5C1.5YY	5	1.5	63.58	9.0	150	13.3
5C2.5YY	5	2.5	91.56	10.8	255	7.98
5C4.0YY	5	4.0	147.33	13.7	355	4.95
5C6.0YY	5	6.0	191.03	15.6	470	3.30
5C10YY	5	10.0	298.09	19.5	865	1.91
